ID # 25080091

Kuhn - VK Series

Call for Price
Overview

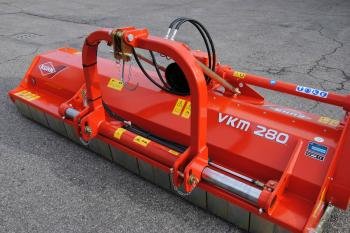

Kuhn VK Series The Vineyard and Orchard Workhorse

VK shredders are available in a wide range of working widths and are ideal for grape-growing and narrow row orchard operations.

With a low profile, smooth edges and streamlined deflector the KUHN VK shredders will finely shred grass, vine shoots and prunings. These types of shredders are ideal for grape-growing operations as well as narrow row orchards. The VK models are available in working widths from 3’2” to 5’1”. These machines run at high speeds and the forged steel heavy hammer knives shred clippings and vine shoots finely and cut grass for an impeccable finish.

Specifications
Model
VK Series
Year
2022
Sale Type
New
Manufacturer
Kuhn
models

  VK 95 VK 115 VK 135 VKD 155
 Working width 38" (0.98 m) 45" (1.14 m) 53" (1.35 m) 61" (1.55 m)
 Overall width 42" (1.07 m) 49" (1.24 m) 57" (1.45) 65" (1.65 m)
 Number of hammer knives 10 12 14 16
 Progressive offset to the right 4" (10 cm) mechanical 7" (18 cm) mechanical 8" (20 cm) mechanical 14" (36 cm) hydraulic
 PTO speed 540 540 540 540
 Minimum PTO power requirement 20 hp (15 kW) 30 hp (22 kW) 35 hp (26 kW) 40 hp (30 kW)
 Maximum PTO power 40 hp (30 kW) 45 hp (34 kW) 50 hp (37 kW) 55 hp (41 kW)
 Maximum diameter of prunings or brush 2" (5.1 cm) 2" (5.1 cm) 2" (5.1 cm) 2" (5 cm)
 Hitch type Cat. 1 or 2, 3-point mount Cat. 1 or 2, 3-point mount Cat. 1 or 2, 3-point mount Cat. 1 or 2, 3-point mount
 Gearbox with integrated overrunning clutch Standard Standard Standard Standard
 Machine net weight approx. with roller 640 lbs (290 kg) 727 lbs (330 kg) 805 lbs (365 kg) 1,124 lbs (510 kg)
your benefits

Versatile Design

Kuhn VK Series Low-Profile Hood

These shredders have a hood without protrusions, screw heads, or sharp angles to catch on trellis lines or low lying branches. The reduced hood height allows the VK shredder to slide under even the lowest wires without damaging vines, plants or trees.

Kuhn VK Series Hammer Knives and Counter Knives

 Hammer knives allow shredding of up to a 2” diameter brush. To achieve fine shredding, use the counter knives (one straight and two notched) to make sure residues are cut.

Kuhn VK Series Offset Capability

VK shredders are fitted with mechanically controlled offset to allow work under trees and to adapt the working width to the tractor width. The center of gravity of the machine remains close to the tractor resulting in a balanced tractor/machine and preventing lifting problems.

Kuhn VK Series Easily Control Your Height

Roller or Semi-Pivoting Wheels

Height is controlled via a roller or semi-pivoting wheels. The roller is fitted with removable ends as standard, so that you can carry out any necessary maintenance or repair quickly and easily at reduced costs.

Suited to Meet Your Needs

Kuhn VK Series Collecting Rake

The rear collecting rake, available as an option, lifts up residues and vine shoots which are pressed down to the ground and need to be shredded. The roller guides keep it stable on uneven or damp ground. For greater machine stability, you can add skids or a roller.
