ID # 25080099

Kuhn - GMD Premium Series

Call for Price
Kuhn GMD Premium Series
Cut Clean, Cut with KUHN

KUHN GMD Premium Series mounted disc mowers, with working widths from 7’10” to 10’2”, offer increased durability, more features and simpler operation.

The best-selling hay mowers in the world are renewed with the KUHN GMD Premium Series mounted disc mowers. Replacing the highly popular 100 Series HD machines, these mowers provide increased durability, enhanced features and a cleaner look for years of low maintenance hay production. The rugged 100 Series cutterbar provides a clean cut. Its flat angle helps keep dirt and other contaminants out of the crop while increasing knife life. An optional hydraulic pivot system eliminates the need to get off the tractor when transitioning between field and transport. A Fast-Fit® quick-change system can be installed to speed up knife changes. A more ergonomic, sleek design reduces clutter while simplifying operation. Cut clean, cut with KUHN.

GMD Premium Series
Sale Type

Kuhn GMD Premium Series Fast-Fit® Kit

An optional Fast-Fit® kit can be added. The Fast-Fit quick-release knife system allows quick changing of knives with the use of a simple tool, yet still provides the optimum cut quality and knife life seen with the standard system. With Fast-Fit, you can achieve up to 50% time savings.

Kuhn GMD Premium Series Cutterbar Lifting Skids

These lifters are available for mowing conditions which require elevated cutting heights. Up to 3.5” (90 mm) are possible. They will also prove useful in wet and sticky mowing conditions.

Kuhn GMD Premium Series Offset Capability

The mower comes standard with the ability to hitch to the tractor with an offset of up 2” to the left or the right. This allows the operator to achieve the full cutting width using various tire sizes and wheel spacing. An optional extended hitch pin is also available, which allows an offset up to 8” to the right to adopt to very wide tire sizes and wheel spacing.

your benefits

Clean and Even Cutting

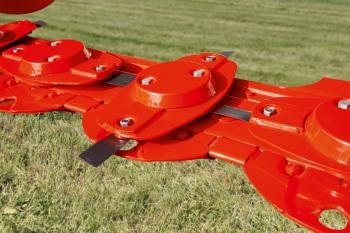

Kuhn GMD Premium Series Heavy-Duty Discs

These discs offer a service life that outmatch all other discs on the market and are adapted to intensive mowing conditions. The GMD Premium Series mowers are equipped with heavy-duty discs, as standard. Beveled knives are standard and ribbed knives are optional.

The shape of the discs allows for a quick transfer of crop rearward, allowing the crop to quickly be formed into a swath. A recut of the grass is therefore avoided. As crop leaves the cutting area, no outside support greatly reduces the chance of crop wrapping.

Kuhn GMD Premium Series Proven 100 Series Cutterbar

 Due to the high reliability, excellent crop cutting, and overall adaptability to varying terrains, the 100 Series cutterbar is a staple in the Premium Series. See for yourself by taking a closer look at what the 100 Series cutterbar has to offer

1- Withstands the highest loads: special high-capacity bearings fitted in a one-piece sealed housing are not subject to distortion.

2- Increased service life: disc pinion shaft bearings endure radial forces for maximum bearing life. This optimum position improves the load balance.

3- Protection should an obstacle be struck: the Protectadrive® system is designed to protect the cutterbar gear train and minimizes the risk of downtime.

4- High-wear resistance: knife attachment hardware is fully protected. For added safety, heat-treated steel cups are welded to the disc.

5- Minimum wear or distortion risks: idler gear fasteners are located in heat treated steel cups. Correct alignment is ensured without the risk of distortion.

6- Long-term reliability: large-diameter gearwheels in high-tensile forged steel with reinforced teeth.

7- Perfect sealing: top-quality o-rings used on cutterbar bearing housings for a perfect, leak-free seal.

Kuhn GMD Premium Series Swath Wheel

The Premium Series comes standard with an outside swath wheel. The swath wheel improves crop flow by providing more positive engagement of crop to leave the cutterbar, especially in taller crops.

Practical Features to Save Time During Work

Kuhn GMD Premium Series Protectadrive® Safety

Every minute saved during the hay season is precious. Ultimate protection, from the externally removable Protectadrive disc bearing stations, provides maximum reliability and quick service. In the event of an impact between a disc and an obstacle, the shaft holding the disc can shear just above the bearing. This is thanks to its carefully dimensioned shear groove. As a result, the gear teeth are protected.

Kuhn GMD Premium Series Belt Tensioning

Belt tensioning is semi-automatic and the adjustment is done with the same tool. The easy to adjust system keeps the proper tension on the belts to increase belt life. This tool is also used for opening the cover and changing the blades.

Kuhn GMD Premium Series One Tool for All Adjustments

 One tool, supplied with the mower and stored in an integrated toolbox, cab perform all of the following tasks:

// Adjustments of the flotation spring

// Unlocking the safety cover

// Belt tension adjustment

// Replacement of knives (if bolted)

Kuhn GMD Premium Series Easily Change to Transport Position

The GMD Premium Series can be pivoted hydraulically into the transport position via an optional pivot cylinder. This means that changing from work to transport mode has never been easier. You will especially appreciate the time saved when working in small fields.

Adaptable to Varying Terrain

Kuhn GMD Premium Series Safety Breakaway Mechanism

Should an obstacle be struck, the safety breakaway causes the mower unit to swing slightly backwards. The impact is significantly reduced. You can reset the device by simply reversing.

Kuhn GMD Premium Series Cutterbar Flotation

Flotation of the cutterbar is adjusted by spring tension. A heavier compensating spring ensures optimum ground pressure through a wide range of terrain and contours. Through the design of the mowing unit articulation, mowing of banks and terraces is possible at a tilt angle of up to 35° and down to -25°, depending on the model. Adjustment can easily be done with the provided tool.

Kuhn GMD Premium Series Smoother Operation on Headlands

To limit the mowing unit lift in headland turn position, a hydraulic shut-off valve is used. This enables smoother operating and increased structure life.

Kuhn GMD Premium Series 3-Point Hitch

The hitch design provides increased durability in extreme working conditions. It also includes adjustable lower offsets and the ability to accept Cat. 2/3N quick hitches without the need of an adapter bracket.
