ID # 25080114

Kuhn -GA 4731 T & GA 5031 T

Call for Price
Overview

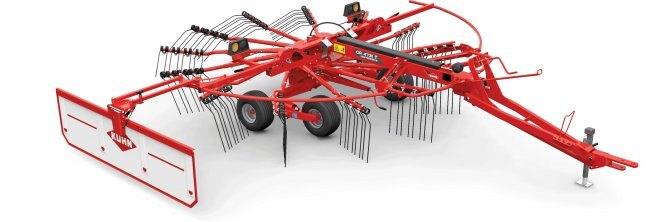

Kuhn GA 4731 T & GA 5031 T
Increase Your Operation’s Productivity

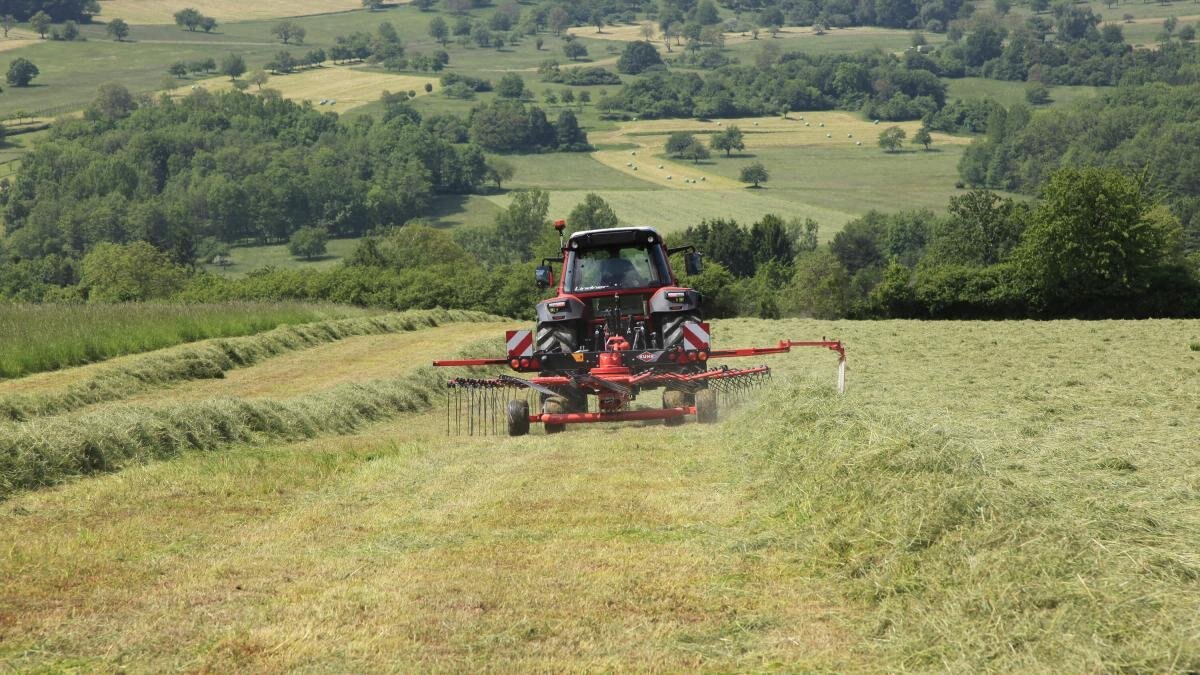

 Single-rotor, trailed KUHN GA 4731 and 5031 T rotary rakes, with working widths of 15’3” and 16’5”, have been designed for operators looking to increase their operation’s productivity.

The single-rotor KUHN GA 4731 T and 5031 T trailed rotary rakes are simple, user friendly and can be operated by a lower horsepower tractor. They provide excellent raking quality and an even swath width in the most uneven of fields. Rakes are fitted with rotors featuring KUHN’s patented Masterdrive® GIII double-reduction gearbox that has been tested in the heaviest of forages. Ground following is perfect in the hilliest conditions because of the tandem axles and the wheels being placed closely to the tines, keeping them engaged in the hay and out of the ground. The height is easy to set with a crank handle. These machines were designed with three things in mind: simplicity, reliability and longevity.

Specifications
Model
GA 4731 T & GA 5031 T
Year
2022
Sale Type
New
Manufacturer
Kuhn
models

  GA 4731 T GA 5031 T
 Working width - includes windrow 15'3" (4.7 m) 16'5" (5.0 m)
 Clean swept width 11' (3.4 m) 12' (3.7 m)
 Windrow width 2'4" - 4'11" (0.7 - 1.5 m) 2'4" - 4'11" (0.7 - 1.5 m)
 Transport width 13'1" (4.0 m) 14'3" (4.3 m)
 Transport width with arms removed 7'7" (2.3 m) 7'7" (2.3 m)
 Lift height under tines 24" (61 cm) 24" (61 cm)
 Double curved tangential mounted tine arms Standard Standard
 Foldable safety guards Standard Standard
 Rotor diameter 12' (3.7 m) 13' (4.0 m)
 Number of tines per tine arm 4 4
 Number of tine arms 13 15
 Fully enclosed gearbox Masterdrive GIII Masterdrive GIII
 Removable tine arms Standard Standard
 Tandem axles Standard Standard
Tires 18 x 8.5-8 18 x 8.5-8
 Hydraulic lift mechanism Standard Standard
 PTO speed 540 540
 Wide angle PTO shaft Standard Standard
 Hitch Drawbar Drawbar
 Minimum PTO power requirement 35 hp (26 kW) 40 hp (29 kW)
 Road lights and signaling Standard Standard
 Machine net weight approx. 1,808 lbs (820 kg) 1,896 lbs (860 kg)
 Safety chain Standard Standard
 Shipping information: gross total weight 2,330 lbs (1,057 kg) 2,630 lbs (1,193 kg)
your benefits

Proven and Durable Components for Optimum Raking Performance

GA_MasterdriveGIIIGearbox.png Masterdrive® GIII Rotor

The patented KUHN Masterdrive GIII double-reduction gearbox is designed for heavy crops, tough field conditions, and intensive use. Key components have been improved to build lighter, yet stronger rotors such as: aluminum alloy housings, optimized cam track minimizing force on the follower bearing, larger follower bearing diameter reducing rotation speed and pressure on the cam, tine arms with large-dimension bearings, sturdier pivoting tine support shaft, reinforced main shaft, and reinforced mounting of tine arms on tine holders. The Masterdrive GIII’s ability to move heavy wet crop, handle dry hay gently, and neatly windrow corn stalks is unrivaled in the industry.

GA_Double_CurvedTineArms.png Double-Curved Tine Arms

Double-curved tine arms are designed to form fluffy and straight windrows for superior raking quality at high speeds. Fluffy windrows allow more air movement through the crop promoting fast and uniform drying!

KUHN rotary rakes achieve this by following two basic principles for ideal windrow formation. First, the tine arms maintain a positive forward position right up to the point where the forage is delivered to the windrow ensuring gentle crop handling and minimal ash incorporation. Second, a steep cam track allows the tines to be raised very quickly to provide additional clearance over the windrow.

Superior Ground Adaptation & Transportability

Kuhn GA 4731 T & GA 5031 T Tandem Axles

 When in hilly conditions, the GA 4731 T and GA 5031 T have solid stability with tandem axles and the added benefit of having cushioned suspension due to a shock absorber on the machine. Ground following is also ideal because of the proximity of the tandem axles and the wheels to the tines, keeping them engaged in the hay and off the ground.

Kuhn GA 4731 T & GA 5031 T High Ground Clearance

When raised in the headland position, there is 24” of clearance between the tines and ground to pass over previously made windrows without disturbing them.

Kuhn GA 4731 T & GA 5031 T Road Transport

With some rakes, switching between field and transport can be tedious. The GA 4731 T and 5031 T have been designed to include centralized arm holders and a quick locking system for easy transition in and out of the field. The optional hydraulic folding windrow curtain and guard makes the transition from working position to transport quick and easy.

Easy, Trouble-Free Adjustments

Kuhn GA 4731 T & GA 5031 T Working Height Adjustments

The adjustment setting for working height (1) and rotor leveling (2) is extremely easy to do with the crank handle on the machine. With this feature, you can precisely set the raking height in order to maximize the crop pickup while minimizing the collection of foreign material.

Kuhn GA 4731 T & GA 5031 T Adjustable Windrow Width

Set the desired windrow width with the easily adjustable windrow curtain to match up to any piece of harvesting equipment being used. Let the tines and the tine arms do the rest by gathering the crop and placing it in a well-formed, light and fluffy windrow.

Kuhn GA 4731 T & GA 5031 T One Single-Acting Hydraulic Valve

With a low horsepower requirement, an easy folding windrow curtain and one single-acting hydraulic valve to raise and lower the machine, these rakes are extremely easy to operate.
