Kuhn HayBob Series
Practical, Economical, Multi-Purpose Machines

 Well suited for the farm hobbyist and hay producers with small- to medium sized operations, these universal haymakers are made from heavy-duty components to give the machine a long life. Both models of the HayBob easily adjust to field contours when tedding and raking.

The KUHN HayBob 300 and 360 tedder/rake combinations are universal haymakers, ideally suited for the farm hobbyist and hay producers with small- to medium-sized operations. The HayBob offers excellent performance in grass and delicate legume hay crops, and provides through tedding to uniformly spread wet crops for fast drying. Easily converted from tedding to raking, these machines provide gentle crop handling and produce fluffy, well-formed windrows. The HayBob provides a practical and economical alternative for producers who wish to save the cost of multiple specialized machines.



HayBob Series
Sale Type
 Hitch type 3-point, Cat. 1 & 2 3-point, Cat. 1 & 2
 Number of rotors 2 2
 Number of tines per rotor 10 10
 Working width when tedding 9'10" (3.0 m) 9'10" (3.0 m)
 Working width when raking - double windrow 19'8" (6.0 m) 3 passes 23'8" (7.2 m) 2 passes
 Working width when raking - single windrow 9'10" (3.0 m) 11'10" (3.6 m)
 Wheel height adjustment Standard Standard
 Pivoting headstock Standard Standard
 PTO speed 540 rpm 540 rpm
 Minimum PTO power requirement 15 hp (11 kW) 20 hp (15 kW)
 PTO with slip clutch protection Standard Standard
 Safety guards Standard Standard
Tires 15 x 6.0-6 (4-ply) 15 x 6.0-6 (4-ply)
 Machine net weight approx. 760 lbs (345 kg) 760 lbs (345 kg)
 Tedding or raking position Center Left-side
 Shipping information: 1 machine per crate - gross total weight 779 lbs (353 kg) 878 lbs (398 kg)




your benefits

Dual Optimization for Tedding and Raking

Kuhn HayBob Series Tine Height and Rotor Pitch Angle

The tine height and rotor pitch angle are quickly optimized for both tedding and raking by adjusting wheel columns and the tractor’s top link to obtain the desired setting.

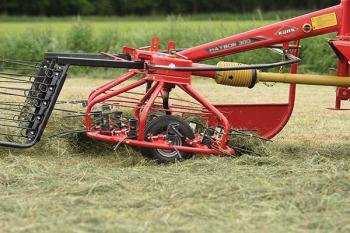

Kuhn HayBob Series Rotor Basket

Each rotor basket is equipped with narrow and wide tines to obtain a wide working area for high-capacity operation and faster working speeds.

Kuhn HayBob Series Central Swath Divider

 A central swath divider ensures that crop is evenly distributed between the rotors when tedding to provide the most uniform distribution of crop for rapid drying.

Easily Adjust to Field Contours
Kuhn HayBob Series
Centrifugal Force Controlled Tines

 The centrifugal force-controlled, horizontal tines self-adjust to field contours as they float through stubble to cleanly pick up crop, providing faster working speeds with little risk of contamination when tedding and raking.

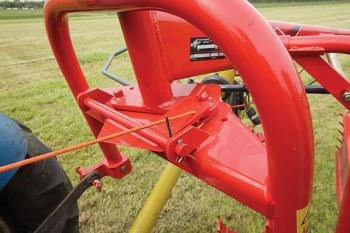

Kuhn HayBob Series Pivoting Headstock with Lock

The pivoting headstock unlocks while at work to closely follow the path of the tractor when turning, without damage to the windrow. When raised for transport, the headstock automatically centers and locks for added safety.

Kuhn HayBob Series Adjustable Swath Boards

 Adjustable swath boards produce neatly formed windrows and may be offset to form a double row in three passes.

Heavy-Duty Components

Kuhn HayBob Series Mounted, Pivoting Tines

Twenty individually mounted, pivoting tines feature nylon bearings to provide reliable performance and operation that is practically maintenance-free.
