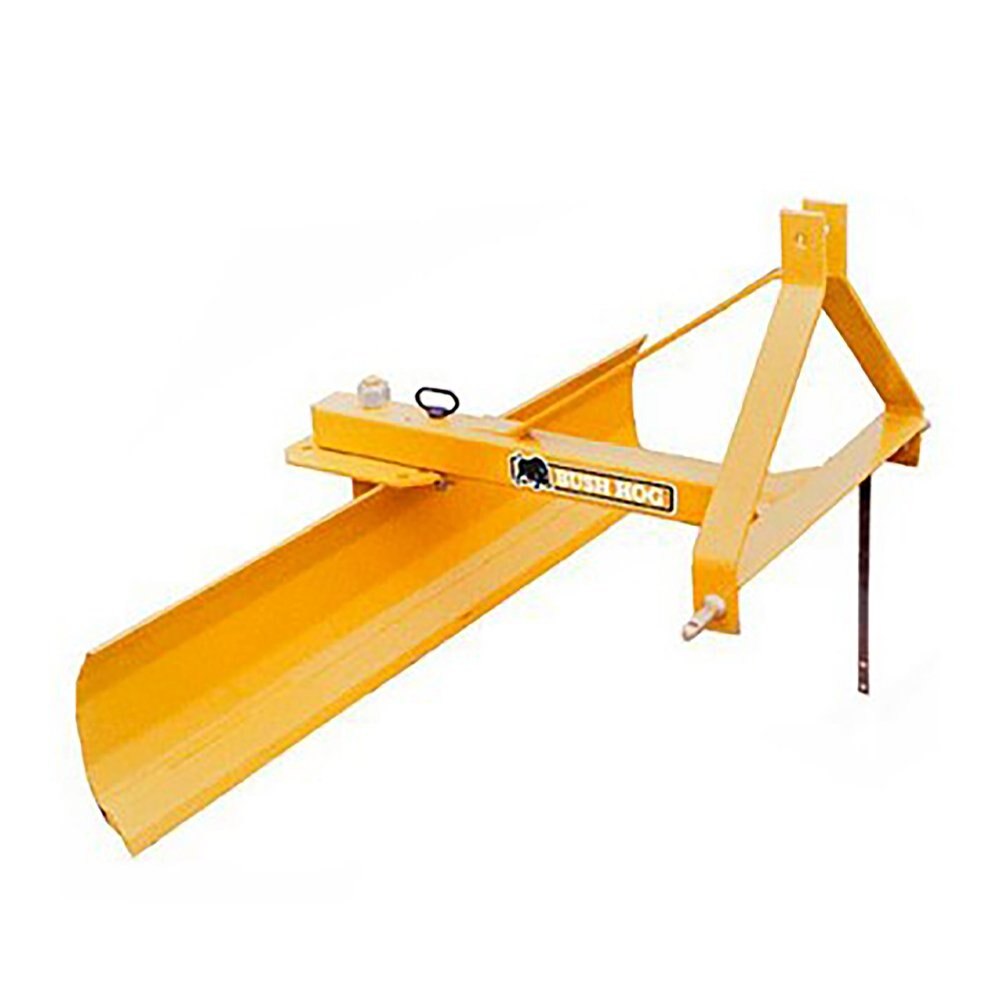

Bush Hog® Compact Rear Mounted Blades
Bush Hog’s compact rear blades are the ideal choice for light duty landscaping, driveway maintenance, or snow removal. These light duty blades are rated for use on two-wheel drive tractors up to 24 PTO horsepower and four-wheel drive tractors up to 15 PTO horsepower. The moldboard may be reversed for backfilling and angled left or right for use in a wide variety of applications. Tilting of the blade is achieved by adjustment of the tractor’s 3-point hitch arms.
Available in 4, 5, and 6-foot operating widths.
|MOLDBOARD WIDTH||4, 5 & 6 ft.|
|MOLDBOARD HEIGHT AND THICKNESS||12 in. x 1/4 in.|
|MOLDBOARD CUTTING EDGE||3/8 in. x 3 in.|
|HITCH||3-Pt. Cat. l, Cat I Quick Hitch|
|APPROXIMATE WEIGHT||136 lbs. (4 ft.), 150 lbs. (5 ft.), 164 lbs. (6 ft.)|
|MAX. TRACTOR HP (PTO) 2-WHEEL DRIVE||24 HP|
|MAX. TRACTOR HP (PTO) FRONT WHEEL ASSIST||15 HP|
|KING PIN DIAMETER||1 1/4 in. Grade 8|
|TILT ADJUSTMENT||3-Pt. Hitch|
|ANGLE ADJUSTMENT||5 forward positions up to 30º, 3 reverse positions up to 15º|
